37-Bit H10302 Clamshell Proximity Cards – 125 kHz Wiegand Format

Product Overview

Secure It Controls offers premium-grade 37-Bit H10302 clamshell proximity cards that deliver the durability, compatibility, and reliability demanded by modern access control systems. Operating at 125 kHz, these cards utilize the widely used H10302 Wiegand 37-bit format, providing long-range reads and seamless integration with most existing 125 kHz systems. Each card is manufactured to precise specifications for consistent performance and dependable data transmission in commercial and institutional installations.

Free samples to test are available: Contact us to request a free sample

Key Features

• Format: 37-Bit H10302 Wiegand (125 kHz proximity)
• Compatibility: Works with standard H10302-compatible systems including HID ProxPoint Plus 6005, MiniProx 5365, MaxiProx 5375, and Identiv U90 series readers

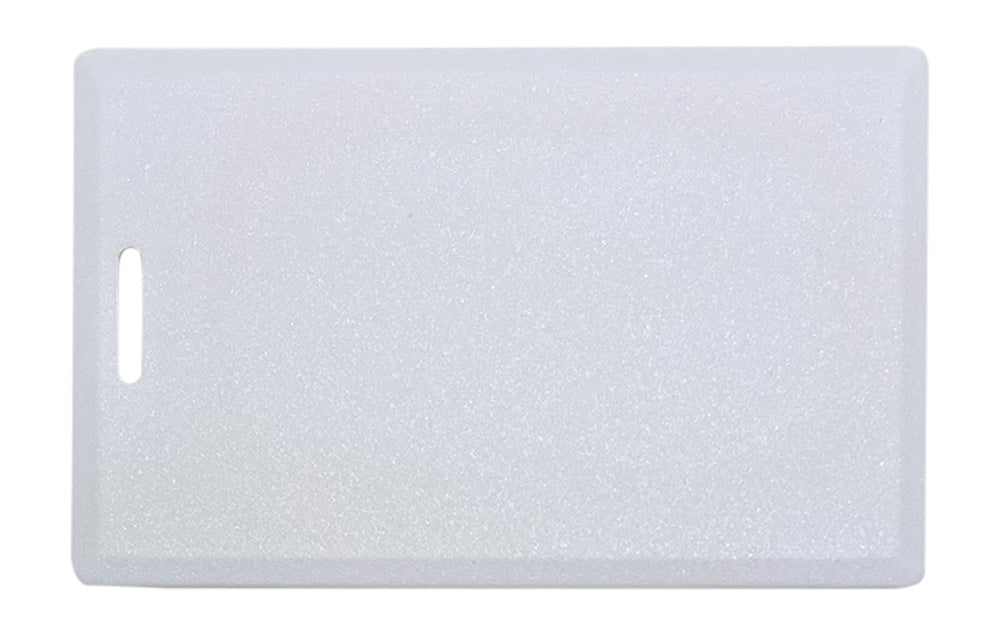

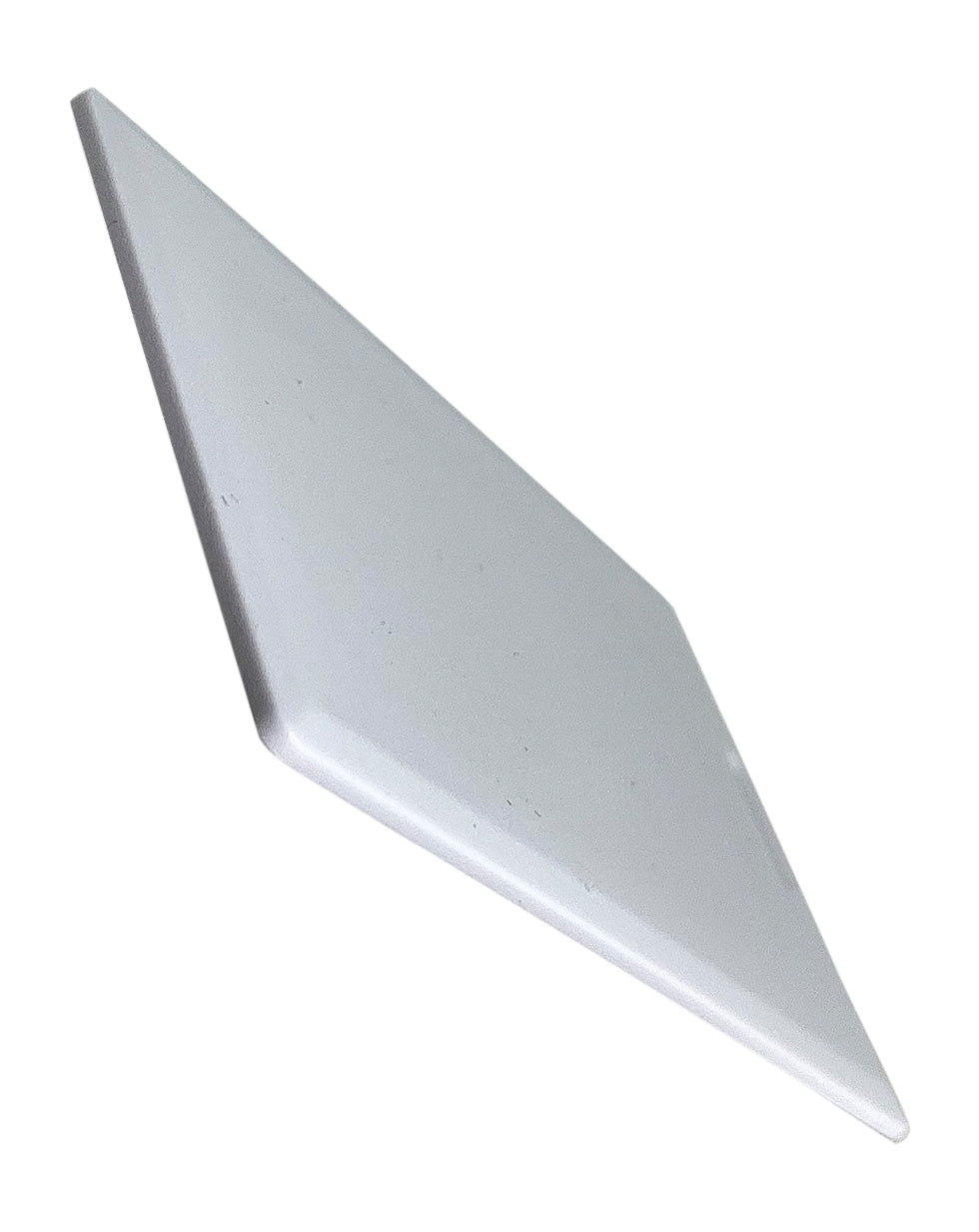

• Dimensions: CR80 (credit-card size) in clamshell construction for rugged use
• Read Range: Typically 2–5 inches depending on reader and environment
• Material: Rigid PVC for maximum durability in industrial or outdoor environments
• Printing: Optional adhesive print overlays available for ID customization

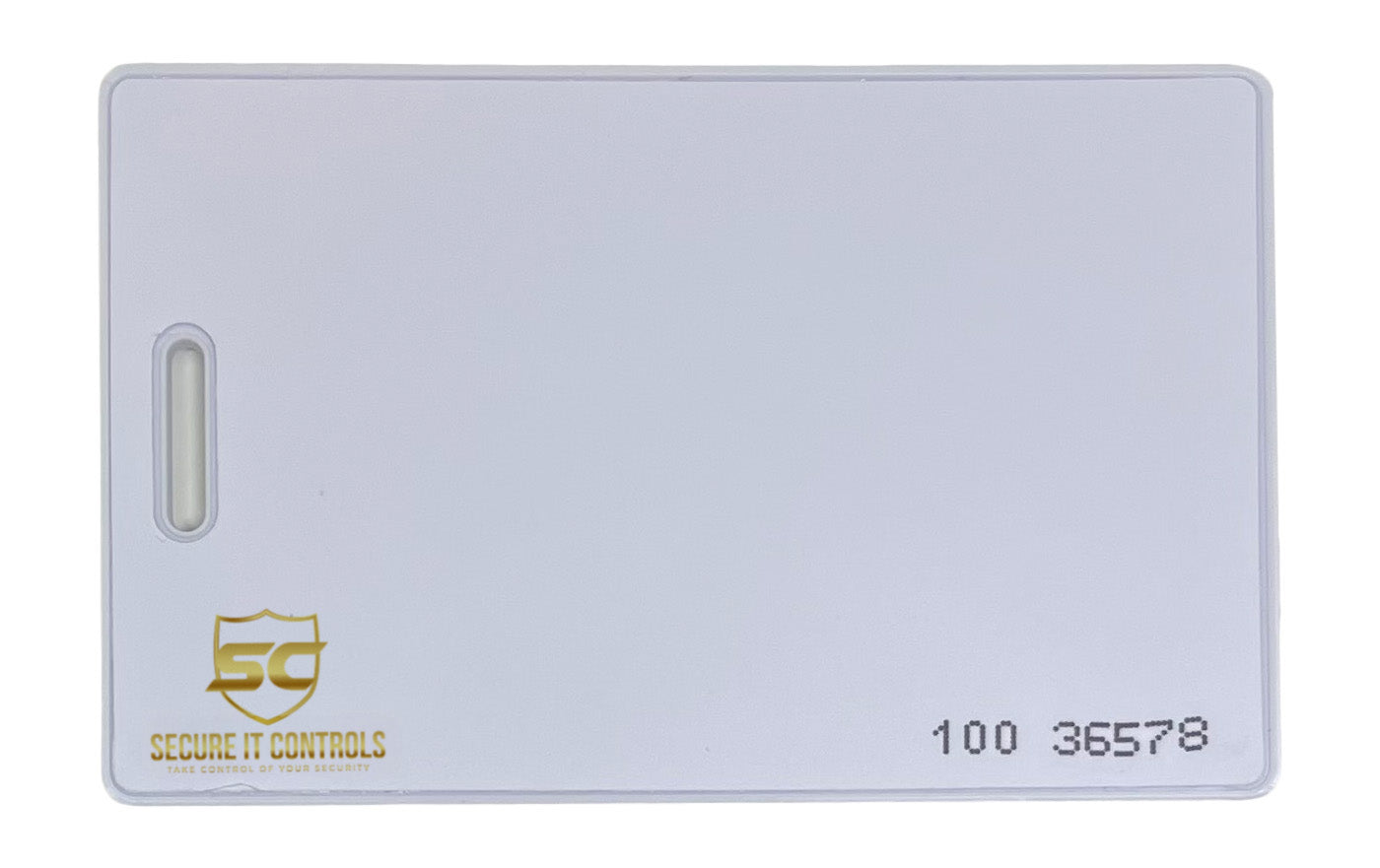

• Encoding: Custom facility codes and card numbers supported upon request

Compatibility & Cross-References

These cards are functionally equivalent to 37-bit H10302 credentials offered by major manufacturers such as:

• HID ProxCard II 1326-37 (37-bit H10302 format)
• Identiv 4001 series 37-bit cards
• ProxCard ISOProx II 1386-37
• AWID PGR-037 series
• Keri PKT-10X Proximity Card when ordered in H10302 format

Compatible readers include:

• HID ProxPoint Plus 6005
• HID MiniProx 5365
• HID MaxiProx 5375
• HID ProxPro 5355
• Identiv U90 and ScrambleProx readers
• Schlage PR10-101 and SM10 series
• Bosch ARD-R10 and ARD-R40 readers

If your access control software accepts the H10302 data structure with 37 bits and standard Wiegand output, these cards will integrate seamlessly.

Applications

Ideal for use in:

• Office buildings and corporate campuses
• Manufacturing facilities and warehouses
• Schools, universities, and municipal buildings
• Fitness centers and membership facilities

These cards offer an excellent balance of security and affordability for any organization utilizing low-frequency proximity technology.

Why Choose Secure It Controls

Secure It Controls specializes in access control credentials, readers, and installation services across Northern Colorado, including Fort Collins, Loveland, Greeley, Longmont, Boulder, Brighton, and Denver. We provide fast shipping, expert support, and the ability to customize facility codes to match your system requirements. Our team also offers installation and repair of access control and security camera systems for commercial and industrial clients throughout the region.
